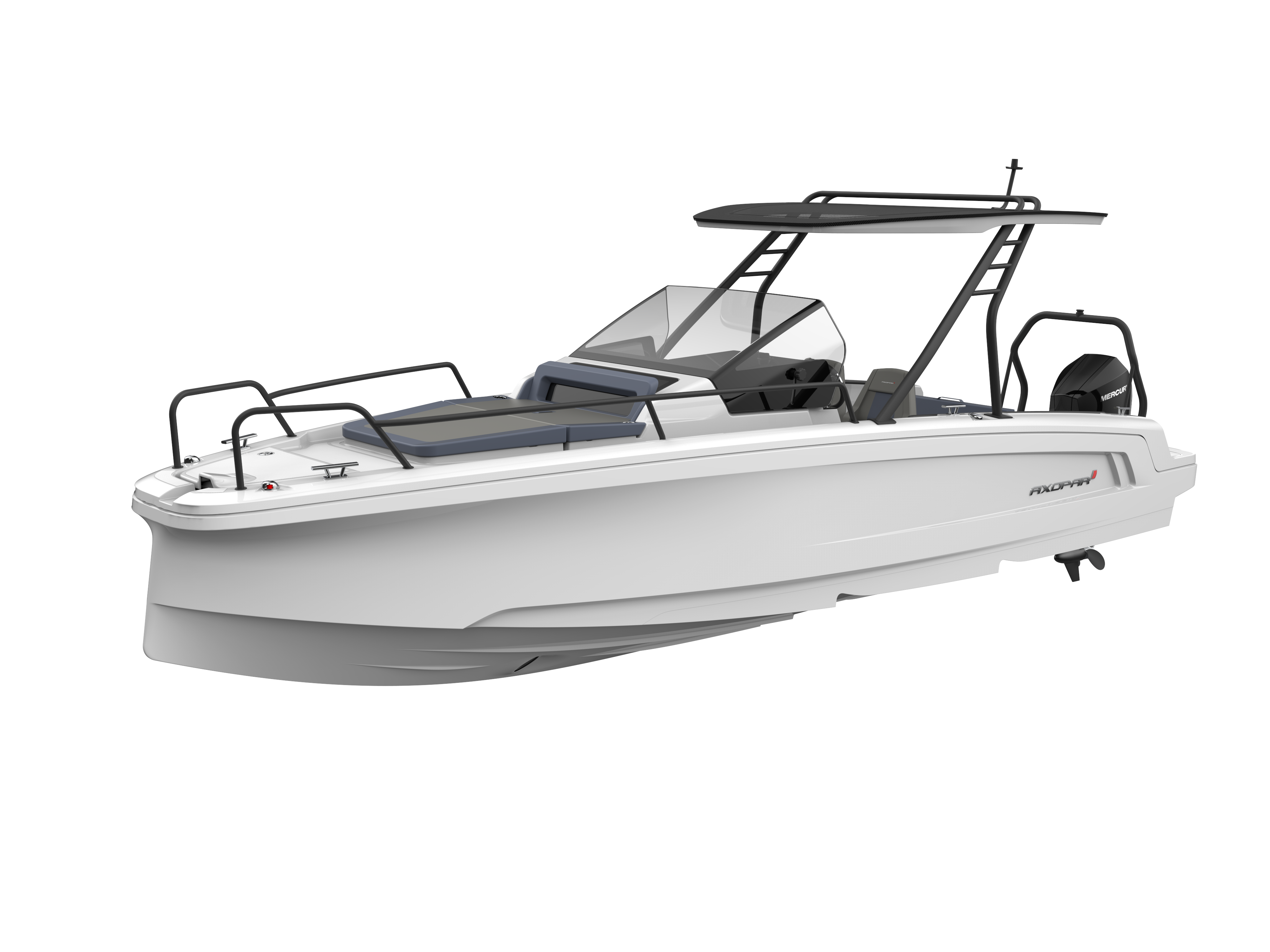

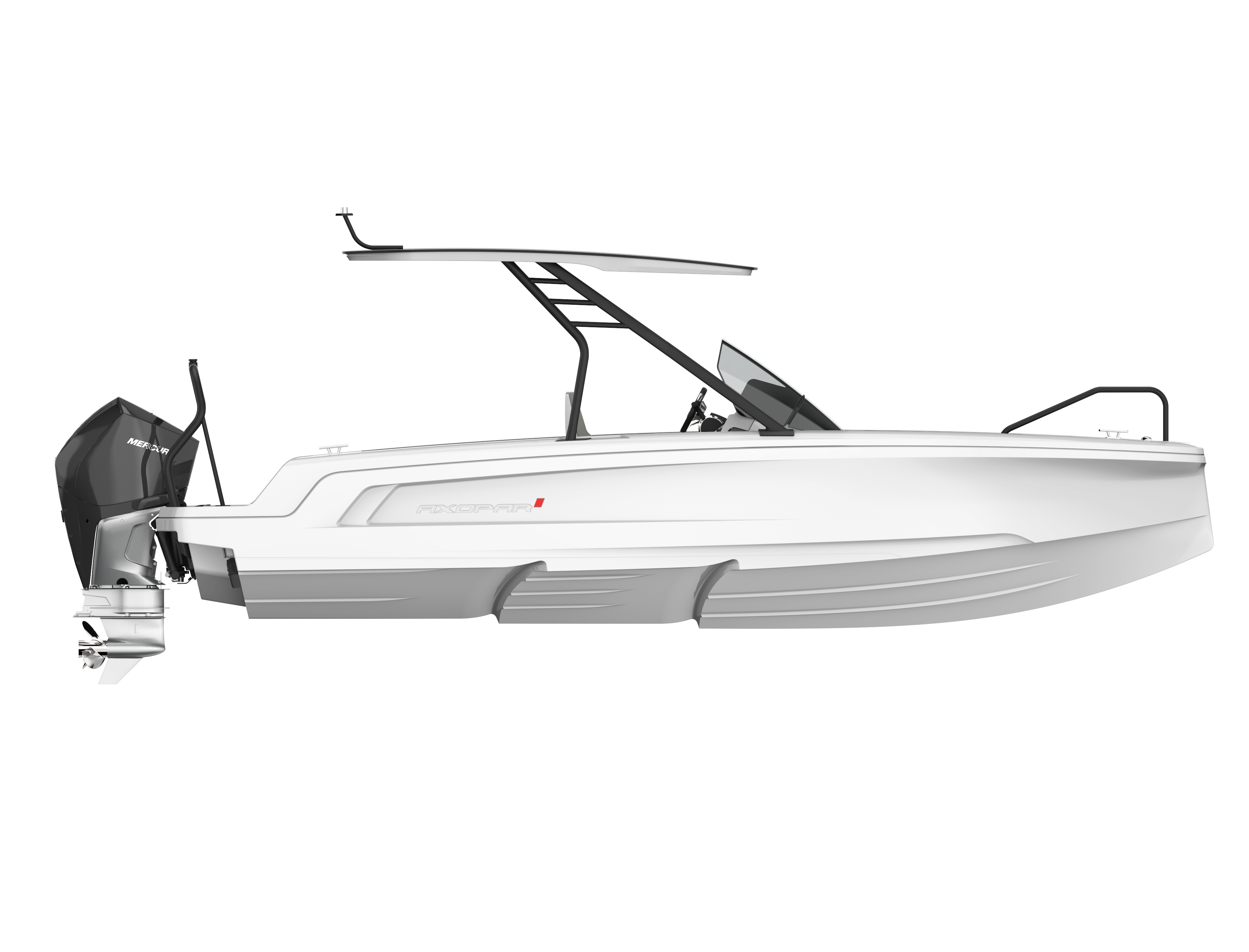

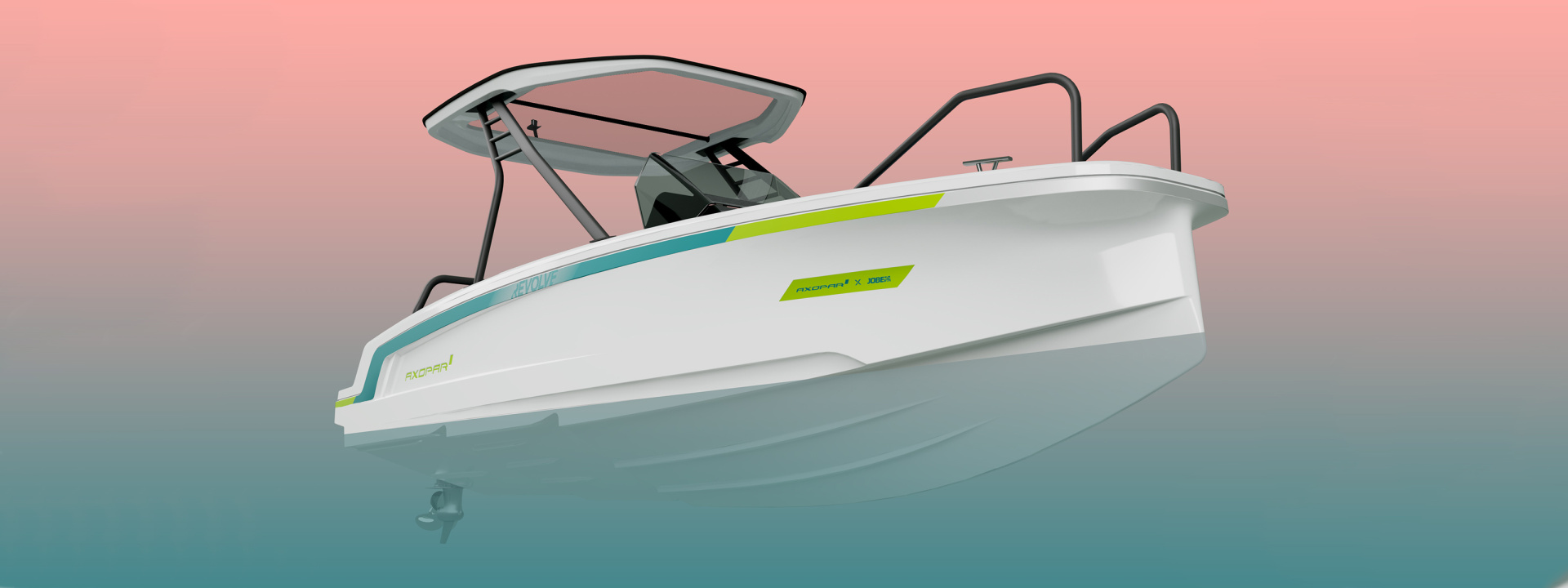

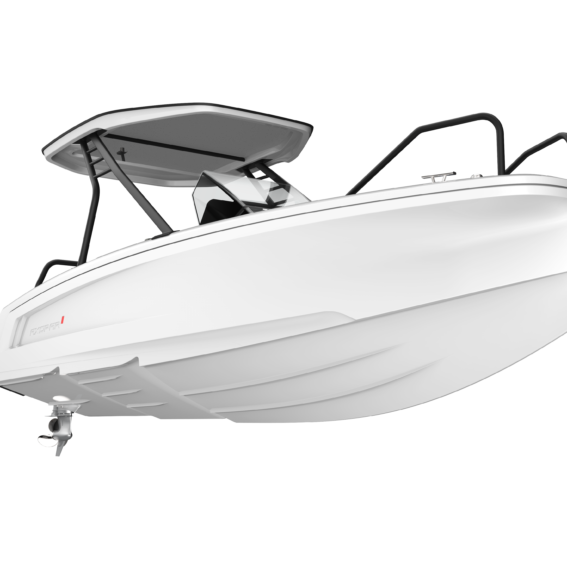

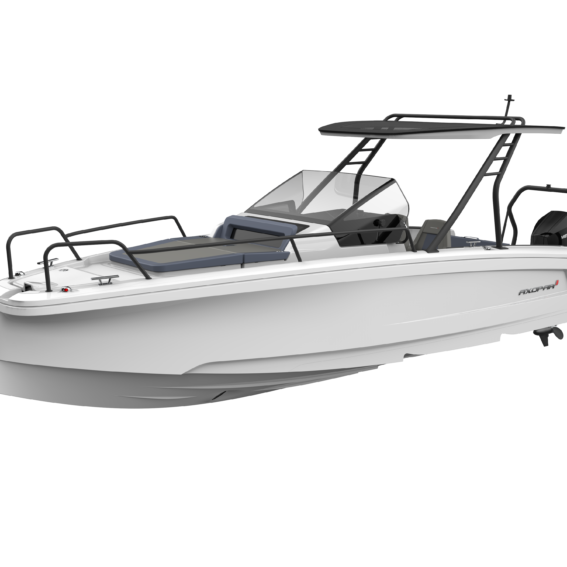

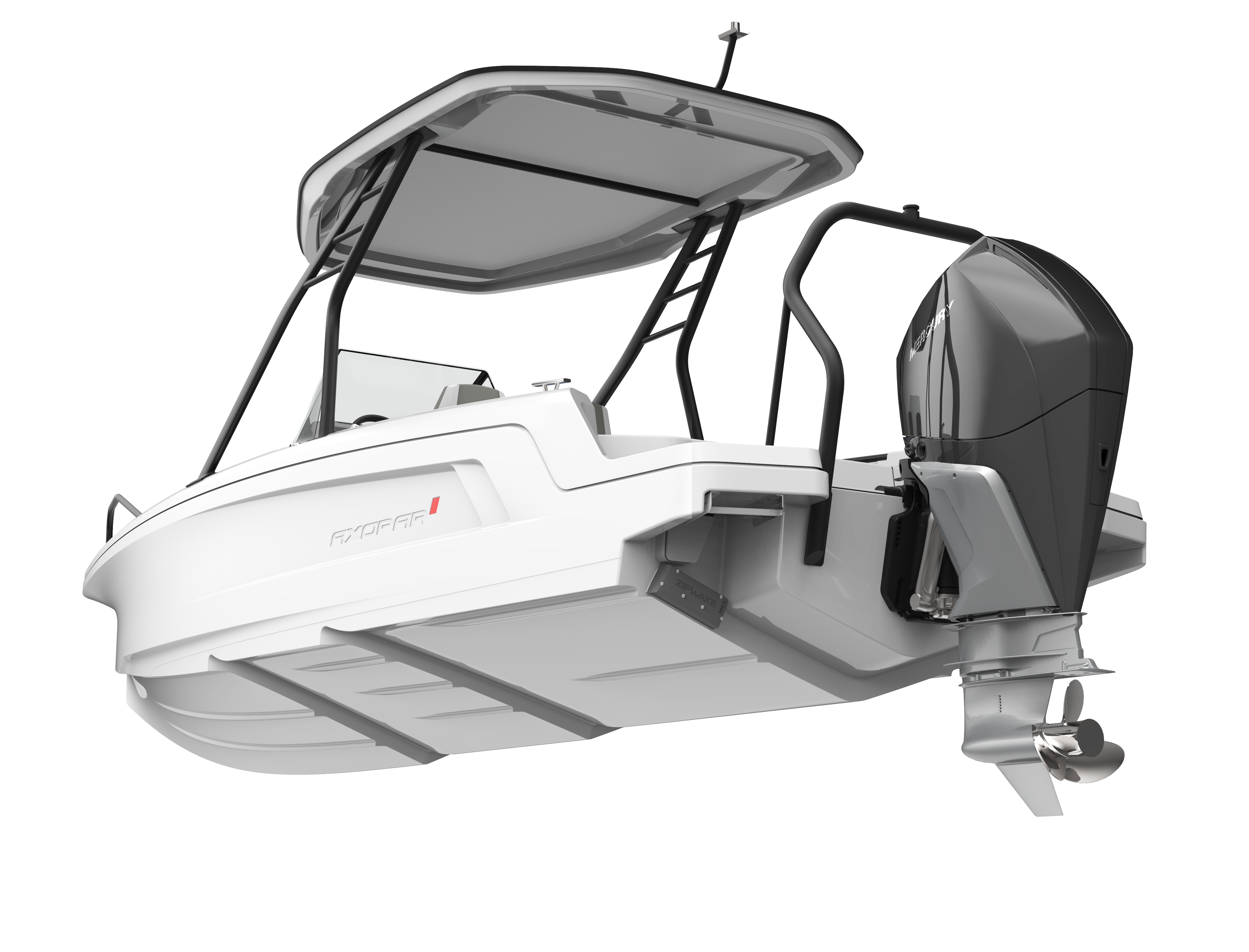

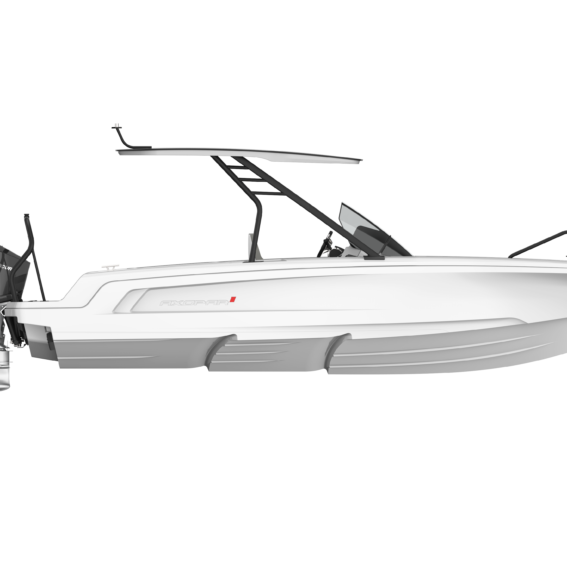

AXOPAR 22 T-Top

Back to Axopar

Model Year	2022
Builder	AXOPAR Boats
Hull Material	GRP
LOA	7.2m (23ft 7in)

Beam	2.23m (7ft 4in)
Max Draft	0.80m (2ft 8in)
Engine(s) Make	Mercury
Engine(s) Power	115-200 hp

Max Speed	45 Knots
Fuel	230 Litres

Features
OPTIONS

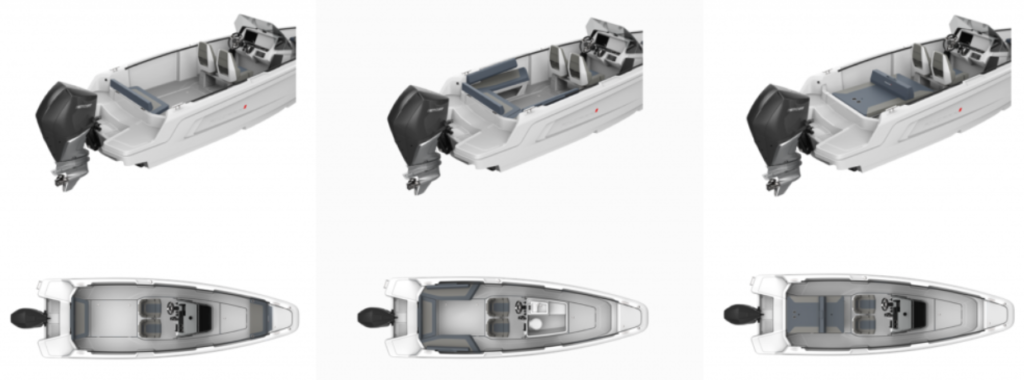

LAYOUTS
PRICING & CONFIGURATOR

HULL AND DECK
Walk-around centre console deck layout w. enclosed aft deck
Large centre console w. storage/optional toilet compartment
Mid sofa w. lockable storage underneath on aft deck
Hand laminated hull with Vinylester resin for the first coat for osmosis prevention of the hull in GRP material
Twin stepped hull w. sharp entry bow
Integrated engine bracket in hull for outboard engines
Fixed aluminium fuel tank 230l w. overflow prevention
Anti-skid finishing on deck areas and hatches
Self-draining deck area w. quick drain aft deck
All hardware, locks, hinges, filler caps & grab rails in 316 stainless steel or powder coated black
4 x cleats
Bow & Stern eyes 316 stainless steel
LED navigation lights on fore deck
Removable anchor light
Spacious anchor locker on fore deck & aft sofa
Windscreen in plexiglass w. black rasterization
Wind deflectors on centre console
In floor deck storage
Large in floor aft deck storage compartment w. gas strut assisted hatch
Storage on side panels
Battery tray w. mount & splash proof main fuses in aft sofa storage
Signal horn
Two electric bilge pumps w. auto-function
Manual bilge pump
Integrated swim platforms
Concealed telescopic bathing ladder

HELM & COCKPIT FEATURES
Clean-Helm Layout
Dashboard panel in dark grey soft touch finish
Control switch panel in high gloss black w. illuminated push buttons
Steering wheel in leather w. Axopar logo
Two front seats w. swivel, length adjustable w. flip-up high-rise bolster
Silvertex sterling on all seats and upholstery
Two beverage holders
Splash proof USB outlet in the console
Threshold free cockpit area
Foot rest with anti-skid finishing
Large harbour cover for console and front seats

01803 203800 | torquay@axoparlondongroup.com

U-Sofa Layout
Multistorage Compartment
Pulpits
Trim tabs
Dual Battery System
Antifouling in Grey
Deck Lights, 8 pcs
Water-ski frame
Fresh water system 40L + shower on aft deck
Toilet, manual Seawater flush, 20L septic tank
Toilet, electric fresh water flush, 20l septic tank
Front deck seat w. cushions and harbour cover
Forward facing console seat w. harbour cover
Aft sofa cushions w. harbour cover
U-sofa cushions w. harbour cover
Sunbed cushion in-fill for U-Sofa Layout
Multistorage compartment cushions w. harbour cover
Table on front deck, removable
Table, removable inc. two flanges
Mid-Ship Cleats
Spray hood
Bimini Top
Canopy, fully enclosed
Mooring Package
Chartplotter Simrad GO 9” XSE
Chartplotter Simrad GO 12” XSE
Echo sounder, thru hull
Audio Entertainment system, incl. 2 x speakers
Audio Signature upgrade 4 x speakers, 2 x tweeter, 1 x amp. + subwoofer
